High Powered
Analog/Digital
Power Amlifiers

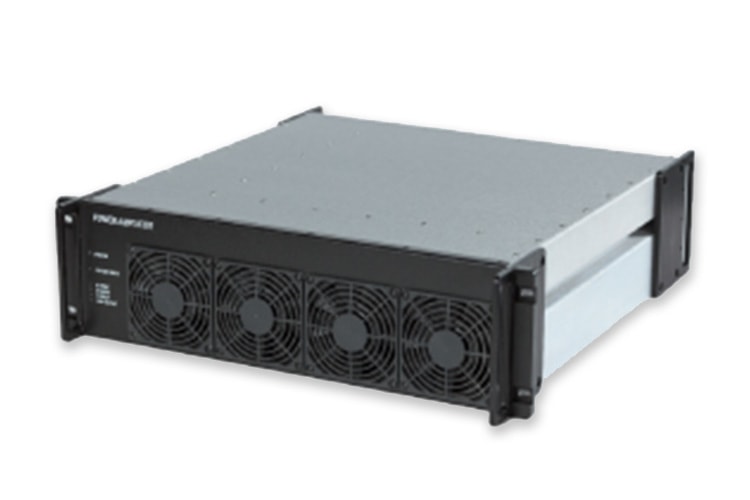

High Powered Analog/Digital Power Amplifiers

High Powered Amp

These high power amplifiers offer output powers of 250 to 350 watts. Frequency ranges include VHF, UHF, and 900 MHz. The PAs are rugged and reliable for your most demanding environments and racking is industry standard making these amplifiers easy to drop into your current system configuration.

Crescend amplifiers come standard with a three year warranty. All amplifiers are designed and manufactured at our headquarters in Schaumburg, Illinois

3-year warranty.

P25 Series - High Power VHF

Model Number Frequency (MHz) Output Power (watts) Input Power (watts) Voltage (watts) Max Current (amps)
P25-R2L3-PS-C8-001 928-942 MHz 250 W 0.2-0.5 W 110 VAC 10 Amps
P25-R5L3-PS-C8-001 928-942 MHz 250 W 0.5-1 W 110 VAC 10 Amps
P25-1L3-PS-C8-001 928-942 MHz 250 W 1-2 W 110 VAC 10 Amps
P25-2L3-PS-C8-001 928-942 MHz 250 W 2-5 W 110 VAC 10 Amps
P25-5L3-PS-C8-001 928-942 MHz 250 W 5-10 W 110 VAC 10 Amps
P25-10L3-PS-C8-001 928-942 MHz 250 W 10-20 W 110 VAC 10 Amps
P25-20L3-PS-C8-001 928-942 MHz 250 W 20-50 W 110 VAC 10 Amps
P25-R2L3-PS2-C8-001 928-942 MHz 250 W 0.2-0.5 W 220 VAC 5 Amps
P25-R5L3-PS2-C8-001 928-942 MHz 250 W 0.5-1 W 220 VAC 5 Amps
P25-1L3-PS2-C8-001 928-942 MHz 250 W 1-2 W 220 VAC 5 Amps
P25-2L3-PS2-C8-001 928-942 MHz 250 W 2-5 W 220 VAC 5 Amps
P25-5L3-PS2-C8-001 928-942 MHz 250 W 5-10 W 220 VAC 5 Amps
P25-10L3-PS2-C8-001 928-942 MHz 250 W 10-20 W 220 VAC 5 Amps
P25-20L3-PS2-C8-001 928-942 MHz 250 W 20-50 W 220 VAC 5 Amps

P35 Series - High Power VHF

Model Number Frequency (MHz) Output Power (watts) Input Power (watts) Voltage (watts) Max Current (amps)
P35-5E3-PS-C8-001 150-174 MHz 350 W 5-10 W 110 VAC 10 Amps
P35-10E3-PS-C8-001 150-174 MHz 350 W 10-20 W 110 VAC 10 Amps
P35-20E3-PS-C8-001 150-174 MHz 350 W 20-50 W 110 VAC 10 Amps
P35-50E3-PS-C8-001 150-174 MHz 350 W 50-100 W 110 VAC 10 Amps
P35-5E3-PS2-C8-001 150-174 MHz 350 W 5-10 W 220 VAC 5 Amps
P35-10E3-PS2-C8-001 150-174 MHz 350 W 10-20 W 220 VAC 5 Amps
P35-20E3-PS2-C8-001 150-174 MHz 350 W 20-50 W 220 VAC 5 Amps
P35-50E3-PS2-C8-001 150-174 MHz 350 W 50-100 W 220 VAC 5 Amps

P25 Series - High Power UHF

Model Number Frequency (MHz) Output Power (watts) Input Power (watts) Voltage (watts) Max Current (amps)
P25-R2HA3-PS1-C8-001 450-470 MHz 250 W 0.2-0.5 W 110 VAC 10 Amps
P25-R5HA3-PS1-C8-001 450-470 MHz 250 W 0.5-1 W 110 VAC 10 Amps
P25-1HA3-PS1-C8-001 450-470 MHz 250 W 1-2 W 110 VAC 10 Amps
P25-2HA3-PS1-C8-001 450-470 MHz 250 W 2-5 W 110 VAC 10 Amps
P25-5HA3-PS1-C8-001 450-470 MHz 250 W 5-10 W 110 VAC 10 Amps
