Low Band VHF Amps
5 Pack Series

Low Band VHF Amps 5 Pack Series

Amp 5 Pack

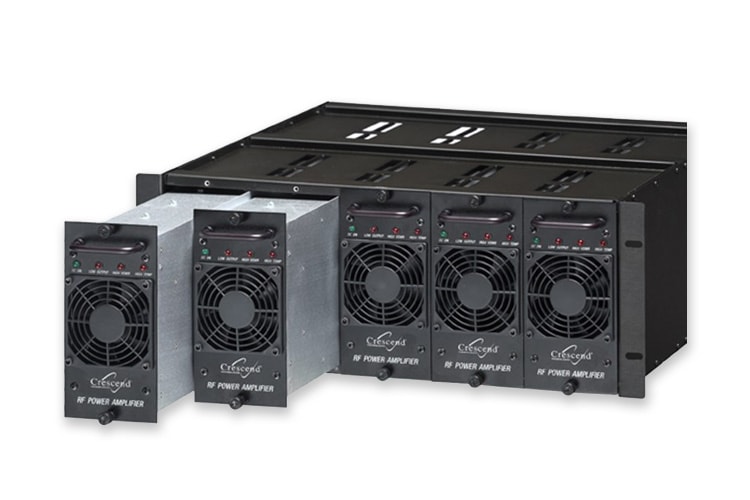

Having the same features as our C5 models, the design of these amplifiers allows for 5 units in the space of one. Designed to be fully modular and space efficient, the 5-pack series also provides continuous duty operation. Rack FPR-5 sold separately.

3-year warranty.

Model Number Frequency (MHz) Output Power (watts) Input Power (watts) Voltage (watts) Max Current (amps)
P10-10AA1-C7-001 30-36 MHz 100 W 10-20 W 13.8 VDC 23 Amps
P10-10AB1-C7-001 36-42 MHz 100 W 10-20 W 13.8 VDC 23 Amps
P10-10AC1-C7-001 42-50 MHz 100 W 10-20 W 13.8 VDC 23 Amps
P10-20AA1-C7-001 30-36 MHz 100 W 20-60 W 13.8 VDC 23 Amps
P10-20AB1-C7-001 36-42 MHz 100 W 20-60 W 13.8 VDC 23 Amps
P10-20AC1-C7-001 42-50 MHz 100 W 20-60 W 13.8 VDC 23 Amps
P10-2AA1-C7-001 30-36 MHz 100 W 2-5 W 13.8 VDC 23 Amps
P10-2AB1-C7-001 36-42 MHz 100 W 2-5 W 13.8 VDC 23 Amps
P10-2AC1-C7-001 42-50 MHz 100 W 2-5 W 13.8 VDC 23 Amps
P10-5AA1-C7-001 30-36 MHz 100 W 5-10 W 13.8 VDC 23 Amps
P10-5AB1-C7-001 36-42 MHz 100 W 5-10 W 13.8 VDC 23 Amps
P10-5AC1-C7-001 42-50 MHz 100 W 5-10 W 13.8 VDC 23 Amps
