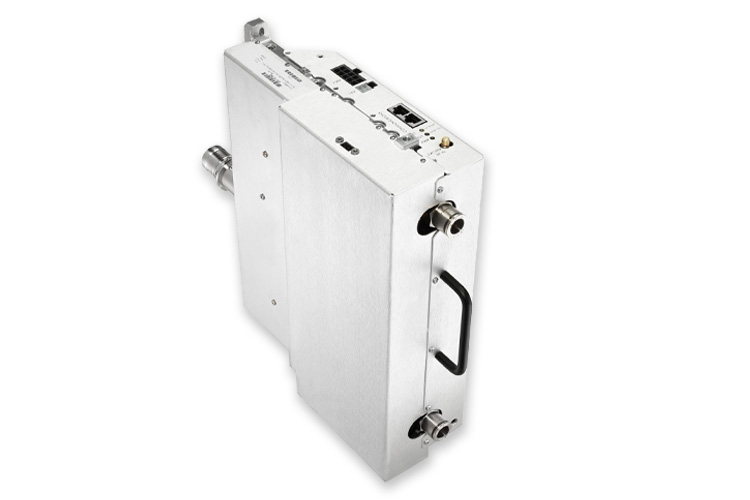

SSPA-L-2.5kW 902-928 MHz Solid State High-Power Amplifier (SSPA)-Blade
SSPA-L-2.5kW 902-928 MHz Solid State High-Power Amplifier (SSPA)-Blade
Key Features
- Integral isolators protect from output mismatch
- 60dB Gain
- 50V DC operation
- DC-to-RF-conversion efficiency: 60%
- Real-time adaptive power -control
- RF power transistors have 500,000+ hour MTBF
- Distributed high-speed multi-processor control architecture
- 7/16 DIN coaxial connector output
- Water cooled design
- SS water quick connects 100 PSI rated (½” OD nylon)
- 2GPM @ 20C minimum flow rate required
- Modular design for creating multiple 2.5kW independent coaxial outputs or combined WR-975 waveguide
- Ambient environment temperature: 0⁰ – 50⁰ C
Microwave Power Output
- Up to 2.5-kilowatt continuous power output – nominal
- Power set resolution: 1 watt at full power
- Rugged NXP LDMOS transistors
- Harmonic suppression >50dBc
- Power control accuracy: 0.1%
- Power measurement accuracy: Forward Power 0.1% / Reflected Power 0.5%.
- mismatch for full power output: 6 dB RL/3:1 VSWR
- mismatch with power fold back: 4 dB RL/4.5:1 VSWR
Frequency Range
Dimensions and Weight
Frequency Range
- Covers the entire 902-928 MHz ISM band
Dimensions and Weight
- Dimensions: 12.75” H x 12.75” L x 3.5” W
- Weight: 20 lbs.
